Modernizing skid steer loaders

Equipment segment adds remote control and other tech goodies.

May 30, 2022   By NATE HENDLEY
Construction
Equipment
Equipment Technology

(PHOTO: CATERPILLAR)

Skid steer loaders remain common on construction sites despite the growing popularity of compact track loaders (CTLs) and wheel loaders. New high-tech options, including remote control, will continue to make skid steers an attractive choice for some time to come, however, especially for applications that match well to their strengths, such as requiring lifting on hard surfaces.

The transportability, maneuverability, and small size are among the advantages skid steers have over compact track loaders, says Luke Gribble, solutions marketing manager at John Deere.

Skid steer loaders, “are much easier to move from jobsite to jobsite compared to compact track loaders in terms of their overall dimensions,” he says.

Compared to a wheel loader, skid steers are “more universal,” adds Buck Storlie, product manager at ASV. “A skid steer can be a tool carrier as much as it can be loader. When attaching augers, trenchers, or road milling planers, a skid steer, from a universality standpoint, is really unmatched on the jobsite.”

Advertisement

Skid steers also tend to be less expensive than CTLs and perform well on hard surfaces.

“If you’re primarily working on hard pavement, or rocky conditions, a skid steer loader remains the best choice,” states Storlie.

“There are definitely applications where skid steers benefit the customer. One of them is in planing on concrete and asphalt,” notes Tyler Zima, product specialist for the loader team at Bobcat. “I would also say many lift and carry applications, especially on concrete. You still see a lot more skid steers [in demolition] because you can get solid tires versus wearing out tracks on a compact track loader, which are more expensive to replace.”



BRING ON THE TECH

Skid steer loader tech trends include rearview cameras and telematics systems that monitor performance indicators. Both are becoming more prevalent. Engines are also getting more efficient, with a trend toward zero emission models, and attachments are getting smarter.

“Smart” attachments allow a machine to instantly recognize the attachment when connected, making for more efficient operations, says Kevin Coleman, product specialist with Caterpillar.

Remote control is arguably the biggest game-changing trend in the skid steer market, however. These systems can help to enhance safety, boost productivity, lower labour costs, and expand a company’s reach.



“[You could be] in an office anywhere in the U.S.A. or Canada, and be operating in multiple time zones, doing multiple tasks, and using multile machines,” states Coleman.

With this in mind, here’s a look at what’s noteworthy in skid steer loaders.



BOBCAT

(PHOTO: BOBCAT)

Bobcat has released an enhanced remote-control system and is expanding its customizable Features on Demand (FOD) digital platform to all 60 Platform R-Series skid steer loaders.

Bobcat’s MaxControl Remote Operation solution works from an app. “You download an app, you place a few items on the machine, then you can run that machine from your iPad or iPhone,” explains Zima. Potential uses for remotely controlled skid steers include demolition work, “and other applications where there might be a hazardous or dusty environment inside a building, where they want to keep the operator out,” states Zima.

The FOD platform enables customers who buy a skid steer from a Bobcat dealer to select and demo various performance-enhancing features. The client can purchase the features they like while features they don’t want are deactivated. New features can also be added later.

FOD options include two-speed travel for faster travel, dual-direction bucket positioning that keeps loads at a consistent angle during lift cycles, high-flow hydraulics for extra hydraulic power, automatic ride control to reduce material spillage, and reversing fans to purge debris.

Bobcat also recently released a pair of M-Series skid steer loaders: the S510 radial lift and the vertical lift S590. Both machines have an innovative fuel system and offer powerful breakout forces, and rapid cycle times.

“They will be for cost conscience customers. If someone wants to get into the field, or for those who do not need all the bells and whistles,” says Zima.



JOHN DEERE

(PHOTO: JOHN DEERE)

“The latest enhancement to the full G-Series line up is the addition of standard electrohydraulic (EH) controls, which offer increased functionality, to allow operators to customize machine operations based on preference,” states John Deere’s Gribble.

EH controls offer G-Series skid steer operators a smoother, quieter ride and improved HVAC performance. Additional EH benefits include easy-to-use joysticks, antistall software – so operators can’t accidentally stall the engine while handling heavy loads — and differential steering.

Differential steering is an exclusive John Deere feature that “speeds up the outside turning of tires/tracks for faster jobsite maneuvering,” he explains.

Onboard grade indication systems that perform real-time grade checks are also available on some large-frame John Deere skid steers. Other skid steer options include a rear-view camera and JDLink — John Deere’s proprietary telematics solution.



ASV

(PHOTO: ASV)

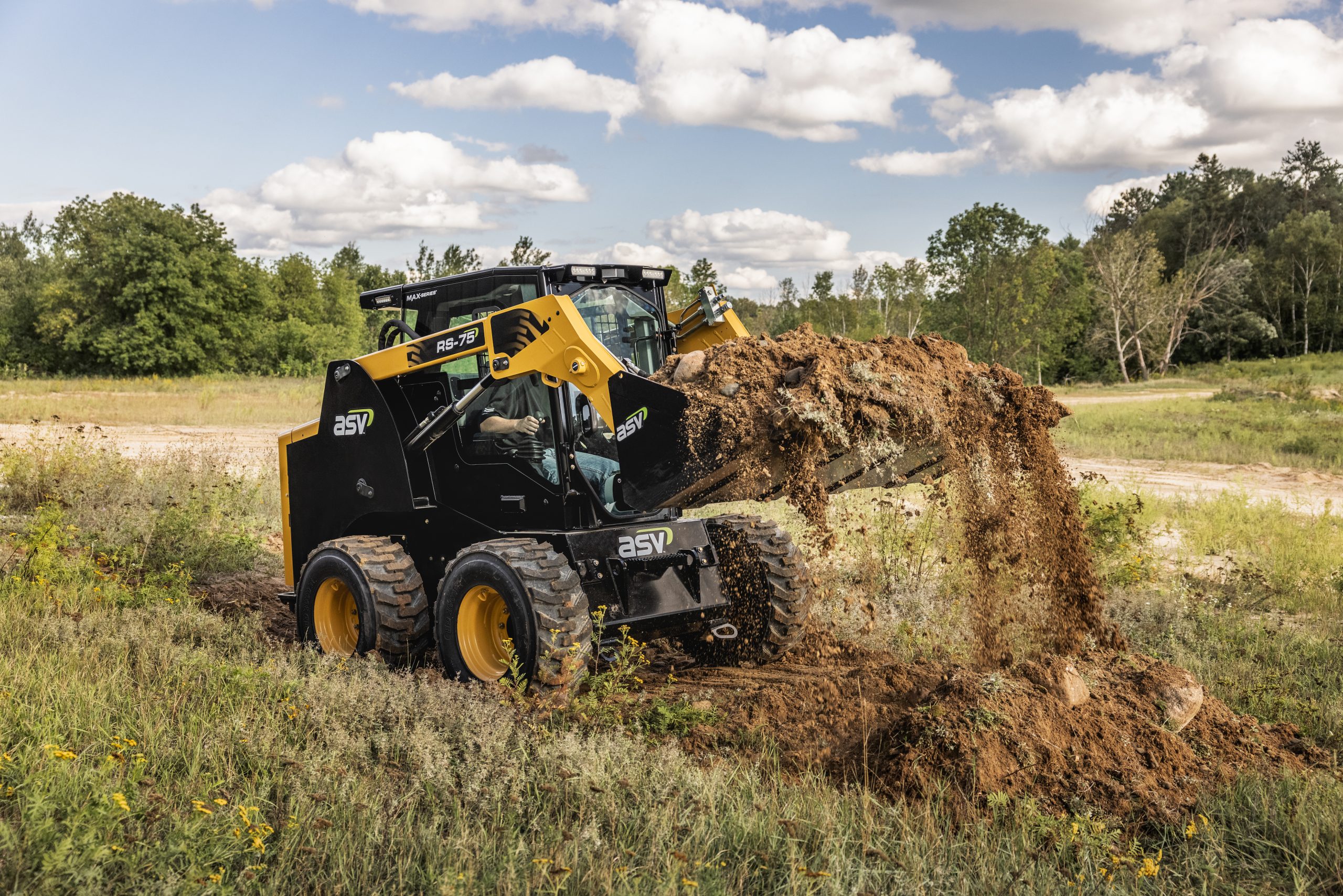

ASV has introduced a new pair of MAX-Series skid steers: the radial-lift RS-75 and vertical-lift VS-75.

The RS-75 and VS-75 offer roomy cabs with 360 degrees of visibility, reinforced windows for better impact protection, and its ROPS rollover protection system. These skid steer loaders also feature standard LED lights and a new, optional high-tech touchscreen display.

At 74.2 horsepower, the RS-75 has a 2,600-pound operating capacity with 5,845 pounds of breakout force. The VS-75 has 5,920 pounds of breakout force, a 3,500-pound operating capacity, and a 74.2 hp engine. Both feature 10.5 inches of ground clearance.

ASV’s new skid steers sport an industry- first roof-based escape hatch. This ingenious safety feature offers an alternative to exiting out the rear window — the usual escape route from skid steers during emergencies. Leaving via the rear window puts the operator at risk if they have to climb over a hot engine or other obstacles.

“With the roof-hatch escape, two quick latches, and I can bounce out through the roof,” notes Storlie. “I’m out of harm’s way from a heat standpoint, and from other challenges that can come with emergency exits.”

ASV also adjusted the footstep inset into its skid steers to facilitate easier non-emergency entry and exit, he adds.



CATERPILLAR

(PHOTO: CATERPILLAR)

Caterpillar will introduce a “smart” creep control feature and Cat Command for Loading on its D3 skid steer loaders later this year.

Cat Command for Loading is a joystickbased remote-control system that will be available in two different versions. A “lineof- sight” version lets an operator control a skid steer within a 400-metre range via a console in a shoulder harness. In the non-line-of-sight version, a skid steer fitted with cameras, a microphone and other items is controlled at a command station.

The non-light-of-sight version has the feel of a virtual simulator. “You sit in a station or chair, with joystick controls. You have a screen and limited controls on the console as well, and you can interface with a machine pretty much anywhere in the world,” says Coleman.

In addition to removing operators from dangerous situations, driverless skid steers allow firms to work on different applications in multiple locations with fewer people, says Coleman.

A sensor and software-based solution, smart creep control is an evolution in existing creep control technology. It is intended for use on D3 skid steer loaders with a cold planer or wheel saw attachment. The load on the attachment is continuously monitored, and the speed of the skid steer is automatically adjusted depending on how much resistance is detected to keep the wheel saw or cold planer running at its most productive speed.



KUBOTA

(PHOTO: KUBOTA)

Kubota’s SSV75 skid steer loader earned a 2021 Highest Retained Value Award from EquipmentWatch, the self-described “world leader in data, software, and insights for the heavy equipment industry.”

EquipmentWatch pegged the five-year residual value of the SSV75 model at 76.3 per cent.

In addition to having what Kubota literature claims is the “widest cab in the market with roll up door,” the SSV75 features a 74.3 hp Tier 4 engine and a tipping load of 5,380 pounds.

Another popular Kubota model, the SSV65 skid steer loader, has a 64 hp Tier 4 engine, and 4,839 pounds of bucket breakout force. Highly efficient Kubota diesel engines reduce fuel consumption and noise.



Nate Hendley is a freelance writer and author, and is a regular contributor to On-Site Magazine.
